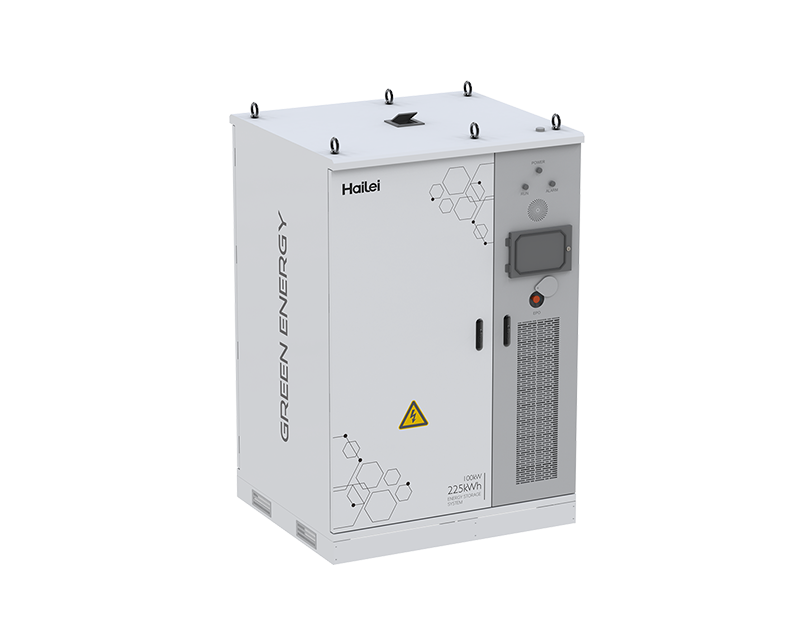

100KW 225KWH Air-Cooling Energy Storage System

Designed with an integrated architecture, this cabinet combines battery cells, BMU, BCU, EMS, PCS, fire suppression system, and PV MPPT controller into a single unit. It delivers a total battery energy capacity of up to 225 kWh and output power of 100 kW. The modular design enables flexible capacity expansion to meet the needs of diverse application scenarios.

Buy Now Download

Features

Inner use inverter

Multi-Layer Fire Protection, Ultimate Safety

Peak-Valley Arbitrage, Smart Operation & Maintenance

Modular Design, Flexible Deployment

Parameter

Parameters	HL-ESS-100-225
Parameters
Nominal Energy	225kWh
Rated Voltage	716.8V
Pack Conﬁguration	32S1P
Battery Cluster Conﬁguration	7S
Cell Type	3.2V/314Ah-LFP
Battery Cabinet Size(WDH)	145012902160mm
Weight	≈ 2.5t
Rated Output Power	100kW
System Efficiency	≥ 88%，@0.5P,25℃
Cooling Method	Air-cooling
Fire Protection System	Aerosol
Communication	ModbusRTU，ModbusTCP
Operating Temperature Range	-20℃～ 55℃
Protection Level	IP54
Grid-connected Parameters
Rated Output Power	105kW
Output Power Max.	115.5kW
Rated Grid Voltage	380V
Grid Frequency	50/60Hz
Maximum Current	167A
Off-grid-connected Parameters
Output Power	105kW
Rated Output Voltage	230/400V
Rated Frequency	50Hz
Maximum Output Current	167A
