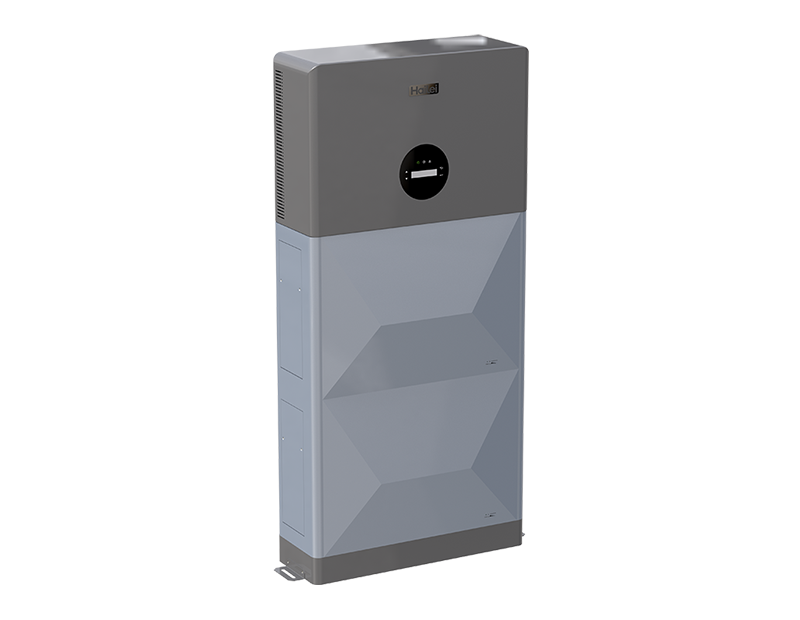

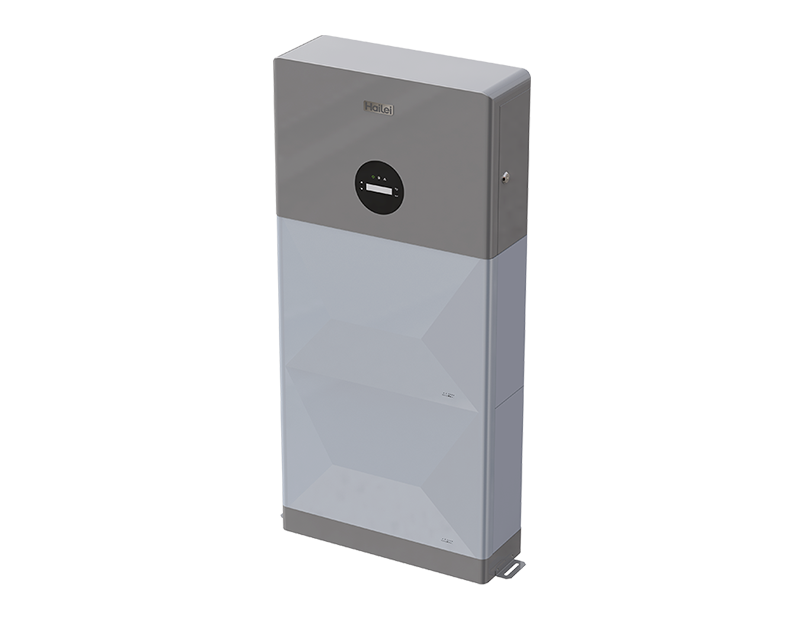

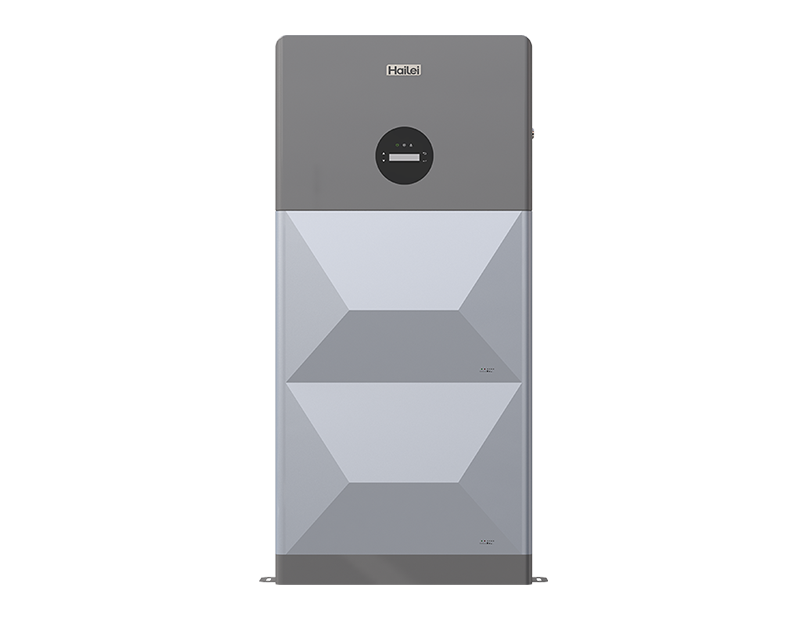

ATOM-AES

Atom series of All-in-one Energy System products integrates solar charge controller， systemcontroller, inverter, lithium battery and lithium battery special management system-BMS into one. ATOM-AES supports 5kWh and 10kWh free choice to meet the diverse needs of users. Also, it equips with wifi module, APP monitoring and remote upgrade function.

Buy Now Download

Features

APP monitoring: Real-time monitoring and Remote upgrade

IP65: Indoor and outdoor installation options

With active balancer: Extend the battery service life

Cycle Life: Up to 6000+ cycles

High safety: Equipped with advanced BMS, with voltage, current, power, temperature, shunt trip and other protection functions

Parameter

Basic Parameters	1-module	2-module
Argument	6KW+5KWh	6KW+10KWh
Output power	5000W	6000W
Input voltage range	Photowoltaic input	Photowoltaic input
Output voltage	220-240VAC	220-240VAC
Output frequency	230VAC+5%	230VAC+5%
Battery type	50Hz±0.3Hz/60Hz±0.3Hz	50Hz±0.3Hz/60Hz±0.3Hz
Depth of discharge	LiFePO4 battery	LiFePO4 battery
Number of batteries	51.2V100Ah	51.2V100Ah
Charging current	1	2
Output waveform	80A	80A
Output efficiency	Pure sine wave	Pure sine wave
Weight	>93%	>93%
Dimension	About 100Kg	About 160Kg
Protection class	600228880	6002281280
Cooling mode	IP65	IP65
Operating temperature range	Air cooling	Air cooling
Storage temperature	0-55℃	0-55℃
Relative humidity	-15-40℃	-15-40℃
Certification standard	CE	CE
