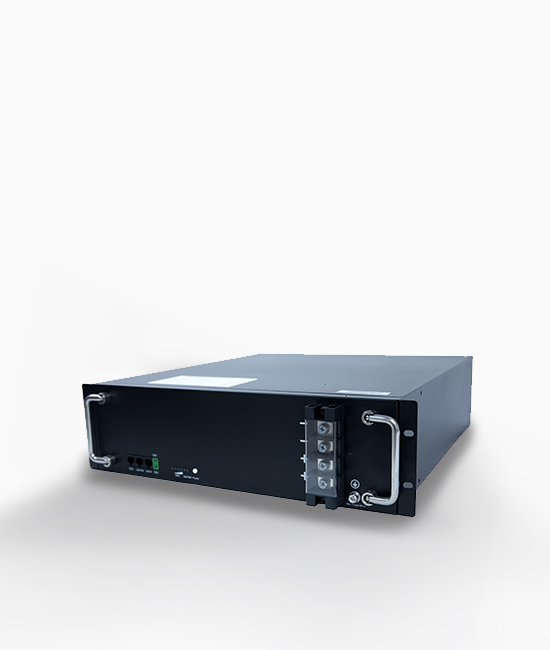

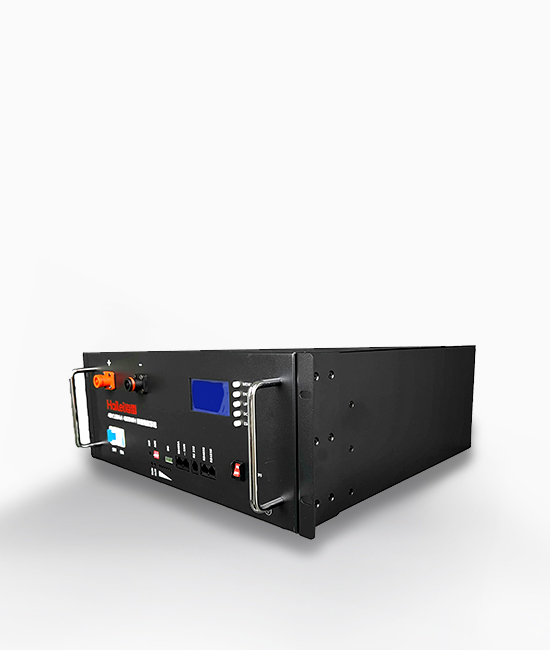

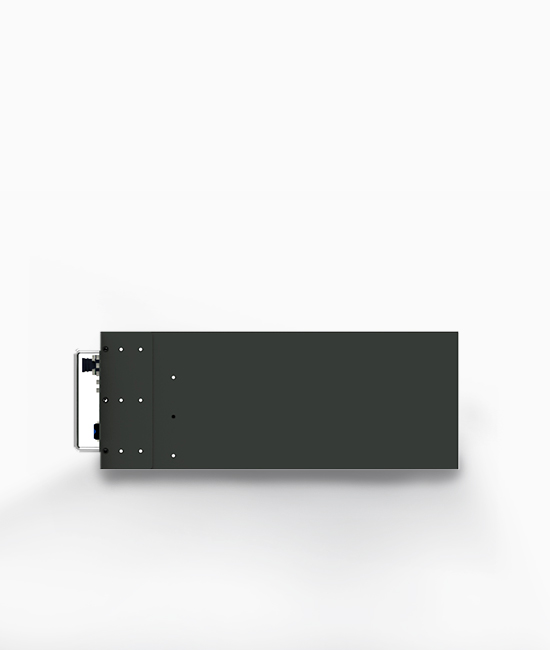

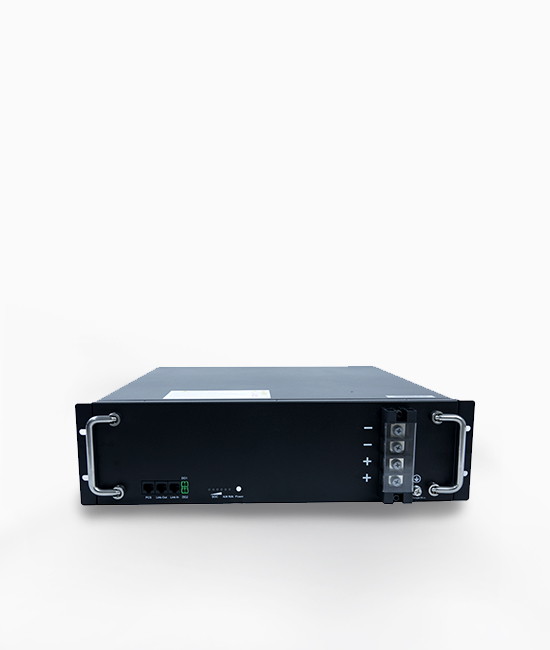

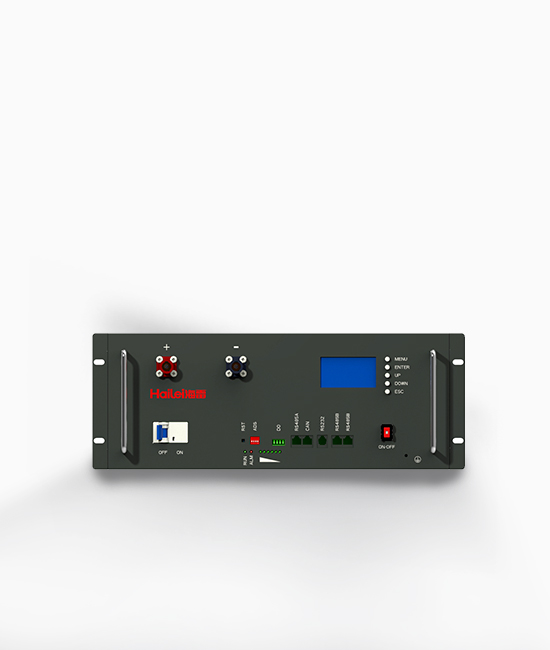

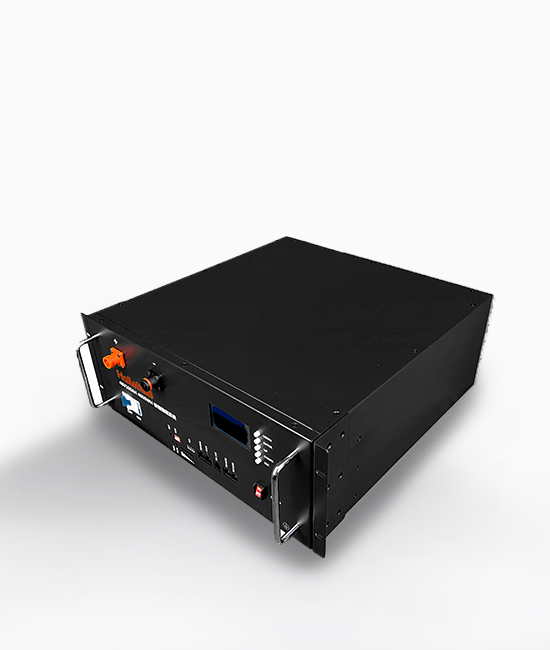

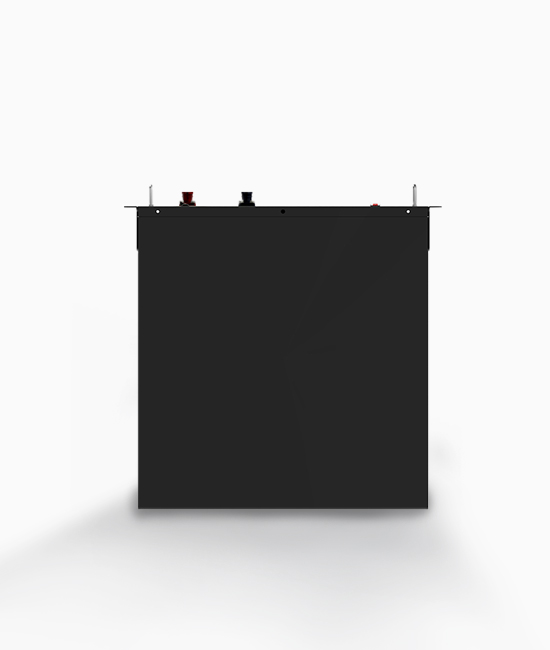

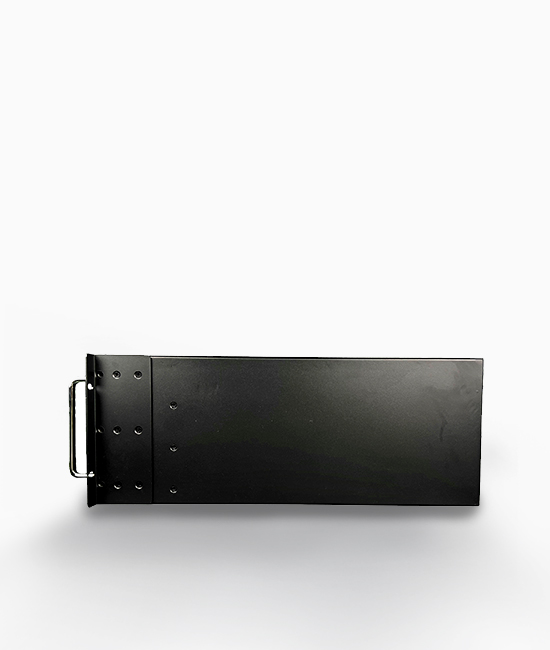

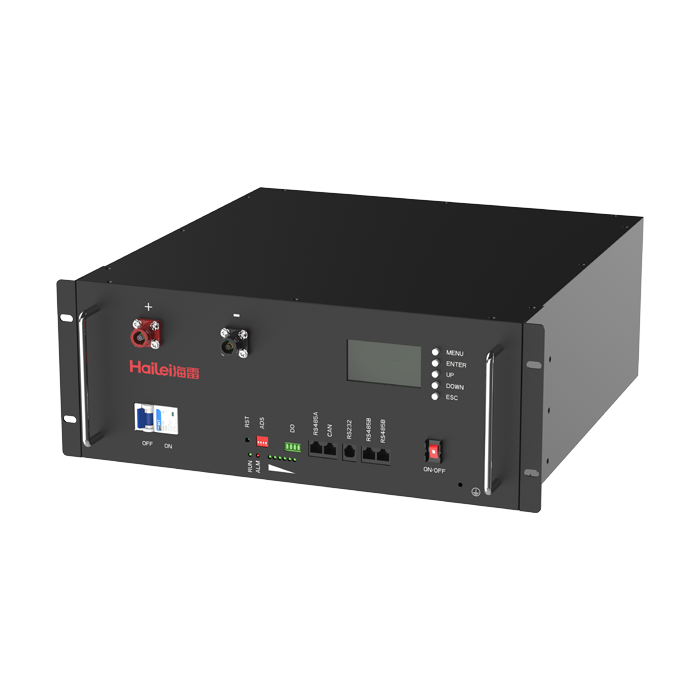

48V Rack-mounted LiFePO4 battery

48V/51.2V rack-mounted lithium iron phosphate battery, high energy density, stylish appearance, easy to install and expand, widely used in telecom base stations, commercial energy storage, UPS,Residential energy storage systems.

Features

Parameter

Certification

Grade A Cells

Light weight, Small size, Long cycle life, using high-quality LiFePO4 Cells, the cycle life is as high as 6000 times

variety of communication protocols,

Support RS485, RS232, CAN etc.

Intelligen BMS

Intelligent battery management system, all-round monitoring of battery pack system status, multiple protections.

Excellent safety performance

In the extreme performance safety test, the battery will not catch fire, explode, leak, and be safer to use.

Good Compatibility

Can be compatible use with the inverter include;Growatt,DEYE,GOODWE,SMA,SOLAX,SolarEdge,Voltronics,Sorotec.
  • Model
  • HL-LR4810015S

  • Nominal Voltage
  • 48V

  • Nominal Capacity
  • 100Ah

  • Energy
  • 4800Wh

  • Internal Impedance
  • ≤180mΩ

  • Cycle life
  • 6000 cycles

  • Max charge current
  • 100A

  • Max discharge current
  • 100A(continuous)

  • Standard discharging method
  • 50A constant current discharge to 37.5V

  • Charge voltage
  • 54.75V±0.05V

  • Communication Port
  • RS232,RS485,CAN

  • Working Temperature
  • Charge 0~45℃ ,Discharge -20~60℃

  • Battery Type
  • LiFePO4

  • Weight
  • 45KG

  • Dimension
  • 460*442*177mm

  • Model
  • HL-LR4810016S

  • Nominal Voltage
  • 51.2V

  • Nominal Capacity
  • 100Ah

  • Energy
  • 5120Wh

  • Internal Impedance
  • ≤180mΩ

  • Cycle life
  • 6000 cycles

  • Max charge current
  • 100A

  • Max discharge current
  • 100A(continuous)

  • Standard discharging method
  • 50A constant current discharge to 37.5V

  • Charge voltage
  • 58.4V±0.05V

  • Communication Port
  • RS232,RS485,CAN

  • Working Temperature
  • Charge 0~45℃ ,Discharge -20~60℃

  • Battery Type
  • LiFePO4

  • Weight
  • 47KG

  • Dimension
  • 460*442*177mm

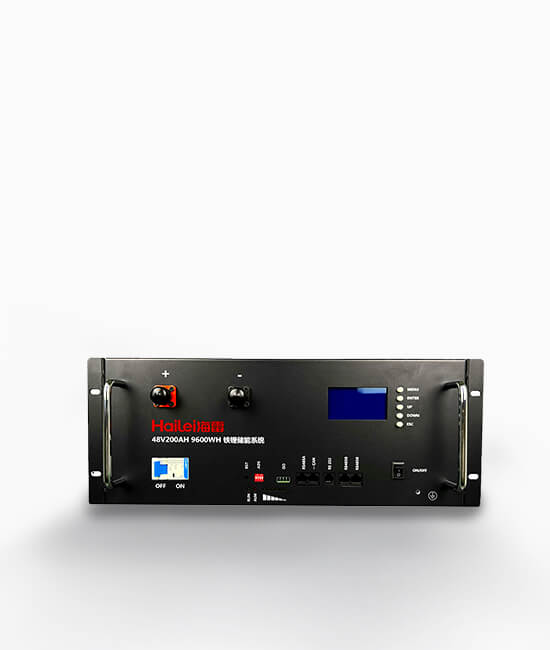

  • Model
  • HL-LR4820015S

  • Nominal Voltage
  • 48V

  • Nominal Capacity
  • 200Ah

  • Energy
  • 9600Wh

  • Internal Impedance
  • ≤180mΩ

  • Cycle life
  • 6000 cycles

  • Max charge current
  • 100A

  • Max discharge current
  • 100A(continuous)

  • Standard discharging method
  • 50A constant current discharge to 37.5V

  • Charge voltage
  • 54.75V±0.05V

  • Communication Port
  • RS232,RS485,CAN

  • Working Temperature
  • Charge 0~45℃ ,Discharge -20~60℃

  • Battery Type
  • LiFePO4

  • Weight
  • 86kG

  • Dimension
  • 680*442*185mm

  • Model
  • HL-LR4820016S

  • Nominal Voltage
  • 51.2V

  • Nominal Capacity
  • 200Ah

  • Energy
  • 10240Wh

  • Internal Impedance
  • ≤180mΩ

  • Cycle life
  • 6000 cycles

  • Max charge current
  • 100A

  • Max discharge current

    100A(continuous)

  • Dimension
  • 680*442*185mm

  • Weight
  • 89kG

  • Battery Type
  • LiFePO4

  • Working Temperature
  • Charge 0~45℃ ,Discharge -20~60℃

  • Communication Port
  • RS232,RS485,CAN

  • Charge voltage
  • 58.4V±0.05V

  • Standard discharging method
  • 50A constant current discharge to 37.5V
