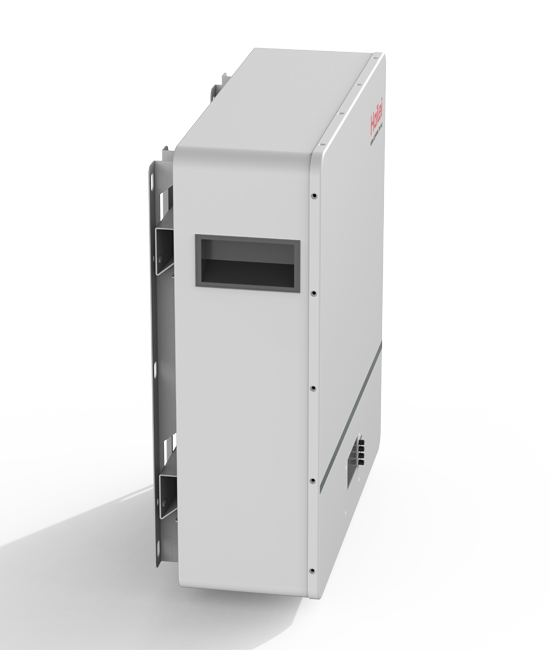

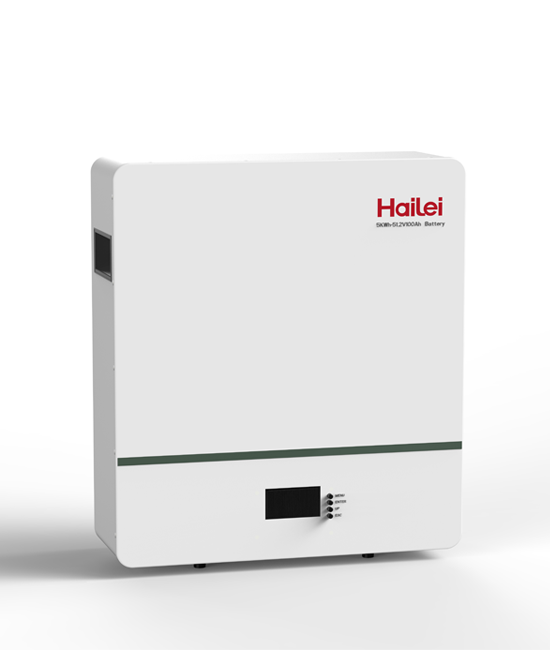

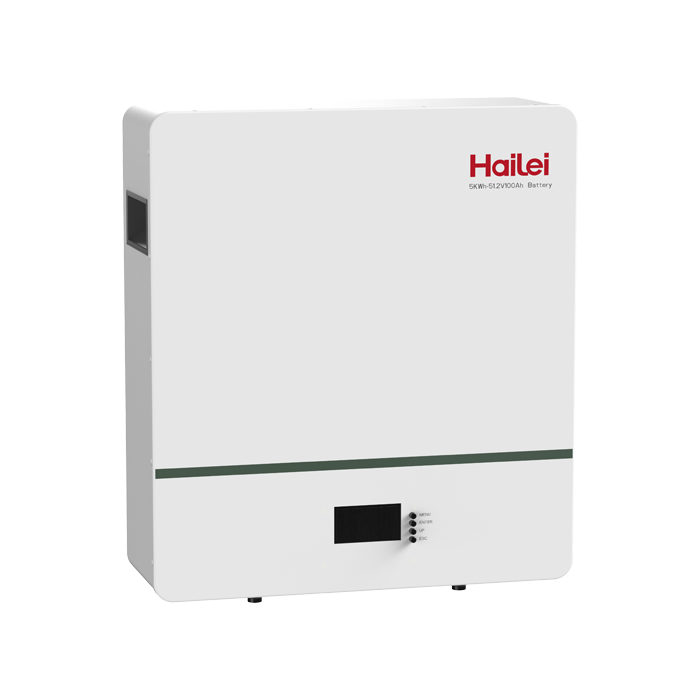

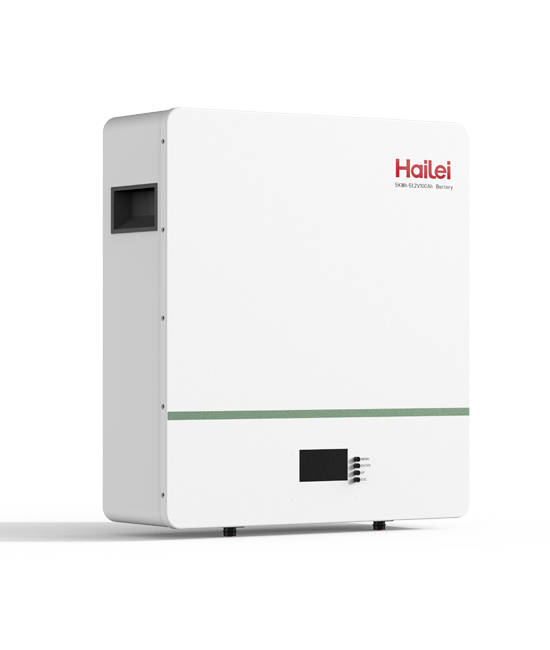

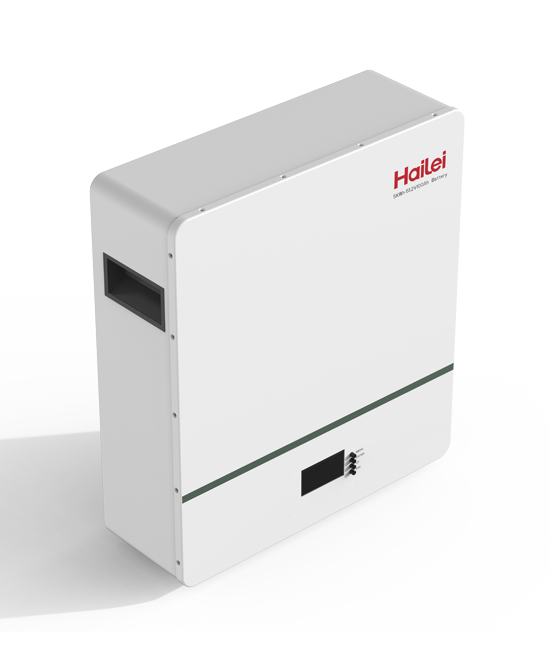

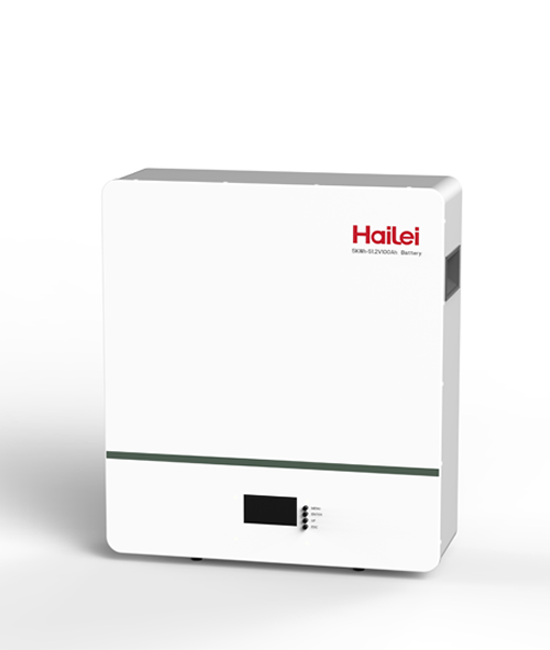

48V 100Ah Wall-mounted LiFePO4 Battery

48V/51.2V wall-mounted LiFePO4 battery, designed for residential energy storage, stylish and simple in appearance, supports wall or ground installation, easy installation and easy expansion.
Buy Now Download

Features

Parameter

Certification

Grade A Cells

Light weight, Small size, Long cycle life, using high-quality LiFePO4 Cells, the cycle life is as high as 6000 times

Communication Protocols

Support RS485, RS232, CAN etc.

Intelligent BMS

Intelligent battery management system, all-round monitoring of battery pack system status, multiple protections.

Excellent safety performance

In the extreme performance safety test, the battery will not catch fire, explode, leak, and be safer to use.

Good Compatibility

Can be compatible use with the inverter include；Growatt，DEYE，GOODWE，SMA，SOLAX，SolarEdge，Voltronics，Sorotec.
  • Model

    • HL-PW4810016S

  • Nominal Voltage

    • 51.2V

  • Nominal Capacity

    • 100Ah

  • Energy

    • 5120Wh

  • Internal Impedance

    • ≤180mΩ

  • Cycle life

    • 6000 cycles

  • Max charge current

    • 100A

  • Max discharge current

    • 100A(continuous)

  • Standard discharging method

    • 50A constant current discharge to 37.5V

  • Charge voltage

    • 58.4V±0.05V

  • Communication Port

    • RS232,RS485,CAN

  • Working Temperature

    • Charge 0~45℃ ,Discharge -20~60℃

  • Battery Type

    • LiFePO4

  • Weight

    • 52KG

  • Dimension

    • 501*452*155mm

Hailei VDE Certificate

Hailei HERO-HV-VDE2510-50

Hailei HERO-HV-IEC62619

Hailei VDE Certificate

Hailei UL certificate

Haieli HERO-HV-CE

Hailei CE Certificate

Hailei IEC Certificate

Hailei ICE Certificate

Hailei CE Certificate

Hailei UN38.3 test report

Hailei UN38.3 air transport

Hailei UN38.3 land transport

ISO9001:2015 certification

ISO9001:2015 certification

CQC product certification

Hailei CE Certificate

Hailei MSDS certification
