Low Voltage off-grid solar energy system

Hailei Low Voltage Solar Energy System Solutions is suitable for residential and small commercial project, with flexible collocation, and the maximum energy storage can reach 150kWh.It can ensure the most efficient use of solar energy at home,increase self-consumption and grid independence, reduce your electricity bills.
Buy Now Download

Features

Parameter

Certification

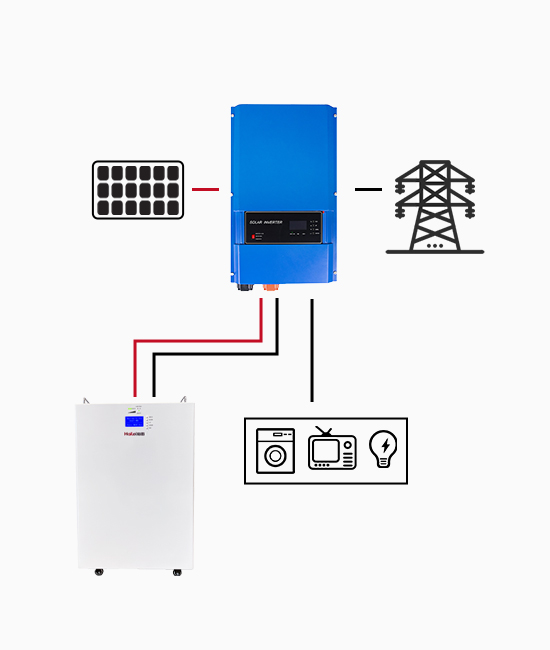

Complete System

Complete system solution,battery system capacity can be freely combined.

Grade A Cells

Battery use new grade A LiFePO4 battery cells,small size, light weight and more safety.

Intelligent BMS

Intelligent battery management system, all-round monitoring of battery pack system status, multiple protections

High Efficiency Inverter

Pure sine wave AC output,built-in MPPT solar charger controller,Low frequency with transformer.

Monitoring

Wifi/GPRS remote monitoring.
  • Battery Type

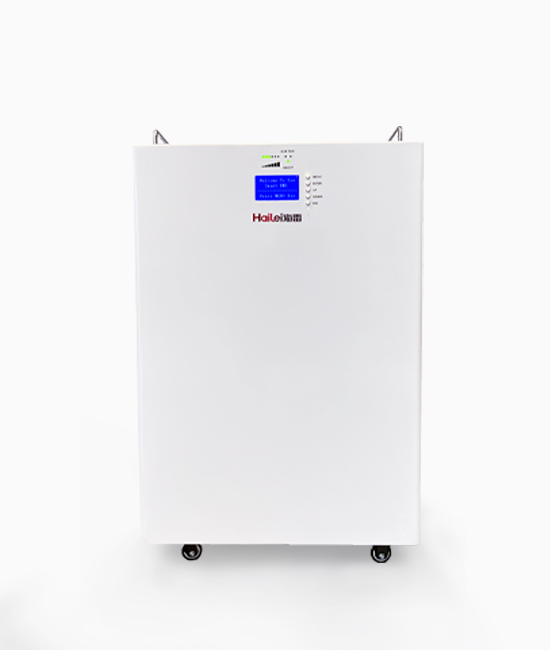

    • Rack mounted/Wall mounted LiFePO4 Battery

  • Battery Rated Voltage

    • 51.2V

  • Battery Rated Cpacity

    • 100Ah/200Ah

  • Battery Max Charge Current

    • 100A

  • Battery Max Discharge Current

    • 100A（Continuous）

  • Battery System Capacity

    • 10kWh-150kWh

  • Battery Cycle

    • 4000 Cycles

  • Rated Power

    • 5kW

  • Output Voltage

    • 104V-110V-115V-120V/208V-220V-230V-240V

  • Max PV Charge Current

    • 80A

  • Max PV Input Power

    • 5000W

  • Mppt Operating Voltage

    • 60-145V

  • Max Charge Current

    • 60A

  • Max Charge Current（PV+AC）

    • 140A

  • Monitor Option

    • WIFI or GPRS

  • Peak Power

    • 320W

  • Open Circuit Voltage

    • 20V

  • Working Current

    • 17.77A

  • Solar Energy Conversion Rate

    • ≥22%

  • Connection Method

    • 7S2P

  • Solar Panel System Peak Power

    • 4480W

  • Battery Type

    • Rack mounted/Wall mounted LiFePO4 Battery

  • Battery Rated Voltage

    • 51.2V

  • Battery Rated Cpacity

    • 100Ah/200Ah

  • Battery Max Charge Current

    • 100A

  • Battery Max Discharge Current

    • 100A（Continuous）

  • Battery System Capacity

    • 20kWh-150kWh

  • Battery Cycle

    • 4000 Cycles

  • Rated Power

    • 10kW

  • Output Voltage

    • 104V-110V-115V-120V/208V-220V-230V-240V

  • Max PV Charge Current

    • 120A

  • Max PV Input Power

    • 7000W

  • Mppt Operating Voltage

    • 60-145V

  • Max Charge Current

    • 80A

  • Max Charge Current（PV+AC）

    • 180A

  • Monitor Option

    • WIFI or GPRS

  • Peak Power

    • 320W

  • Open Circuit Voltage

    • 20V

  • Working Current

    • 17.77A

  • Solar Energy Conversion Rate

    • ≥22%

  • Connection Method

    • 7S3P

  • Solar Panel System Peak Power

    • 6720W

Hailei VDE Certificate

Hailei HERO-HV-VDE2510-50

Hailei HERO-HV-IEC62619

Hailei VDE Certificate

Hailei UL certificate

Haieli HERO-HV-CE

Hailei CE Certificate

Hailei IEC Certificate

Hailei ICE Certificate

Hailei CE Certificate

Hailei UN38.3 test report

Hailei UN38.3 air transport

Hailei UN38.3 land transport

ISO9001:2015 certification

ISO9001:2015 certification

CQC product certification

Hailei CE Certificate

Hailei MSDS certification
