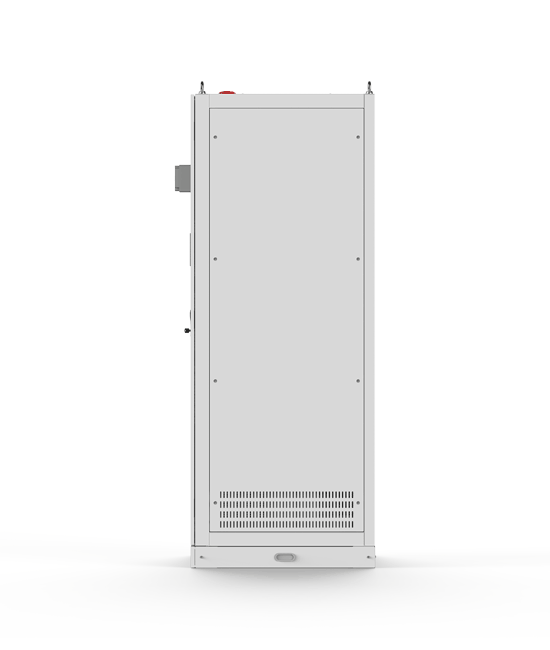

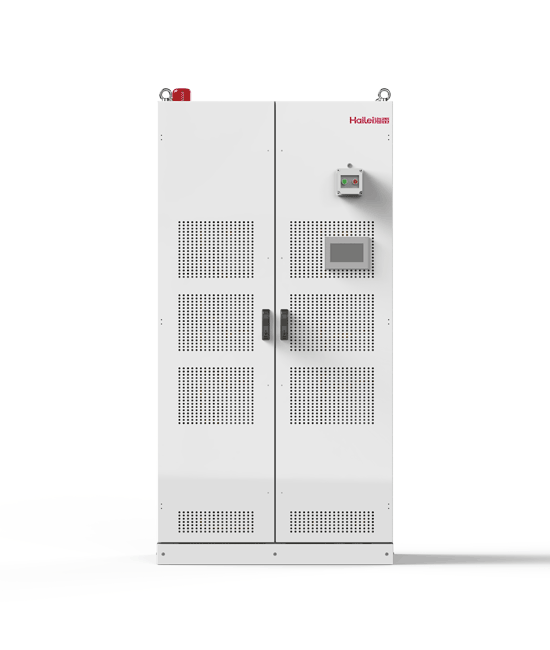

186kWh Industrial&commercial ESS

50KW-186KWH energy storage system based on LiFePO4 battery technology. The system consists of a single cluster battery cluster, consisting of 13 battery packs. A single cluster corresponds to a high-voltage control box. The high-voltage control box integrates BCU main control, each The battery pack has a BMU slave control, after the single-cluster battery pack is connected in series, by connecting with the high-voltage control box, and then connecting the output of the high-voltage control box with the 50KW energy storage converter (PCS), and then connecting with the load through the converter.
Buy Now Download

Features

Parameter

Certification

High Strength

Laser welded busbar, low impedance, high strength.

Safety

The battery cells is covered with insulating film, and the electrodes and busbars are designed with plastic slots to prevent leakage.

Reliable

Built-in fan, balanced temperature, materials used meet V0-flame retardant grade, equipped with fire protection system.

Easy Maintenance

External BMU for easy maintenance
  • Model

    • HL-ESS186kWh

  • Battery Type

    • LiFePO4

  • Battery Nominal Voltage

    • 51.2V

  • Battery Nominal Capacity

    • 280Ah

  • Batttery Dimension

    • 480*720*230mm

  • Battery Working Voltage Range

    • 44.8V-58.4V

  • Number of batteries

    • 13 pcs

  • System Capacity

    • 186kWh

  • System Dimension

    • 1100*820*2160mm

  • High-voltage Control Box

    • 1 PCS

  • Fire Protection System

    • FGS-XR1000E Electrochemical Fire Protection Module

  • System Dimension

    • 1100*820*2160mm

Hailei VDE Certificate

Hailei HERO-HV-VDE2510-50

Hailei HERO-HV-IEC62619

Hailei VDE Certificate

Hailei UL certificate

Haieli HERO-HV-CE

Hailei CE Certificate

Hailei IEC Certificate

Hailei ICE Certificate

Hailei CE Certificate

Hailei UN38.3 test report

Hailei UN38.3 air transport

Hailei UN38.3 land transport

ISO9001:2015 certification

ISO9001:2015 certification

CQC product certification

Hailei CE Certificate

Hailei MSDS certification
