High Voltage Hybrid solar energy system

Hailei High Voltage Solar Energy System Solutions is suitable for residential and small commercial project, that aims to provide users with more sufficient and reliable energy storage.With flexible collocation, and the maximum energy storage can reach 327kWh.The newly designed system provides easy connector to save valuable time for installation.It can ensure the most efficient use of solar energy at home,increase self-consumption and grid independence, reduce your electricity bills.

Features

Parameter

Certification

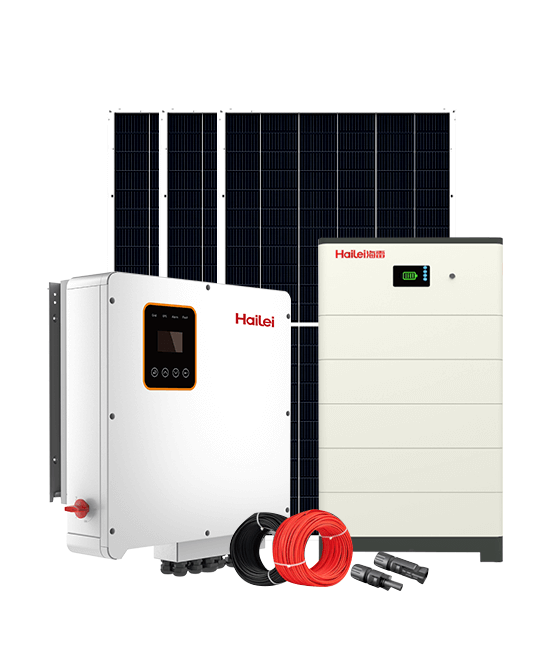

Complete System

Complete system solution,Modular battery design ,capacity can be freely combined up to 327kWh.

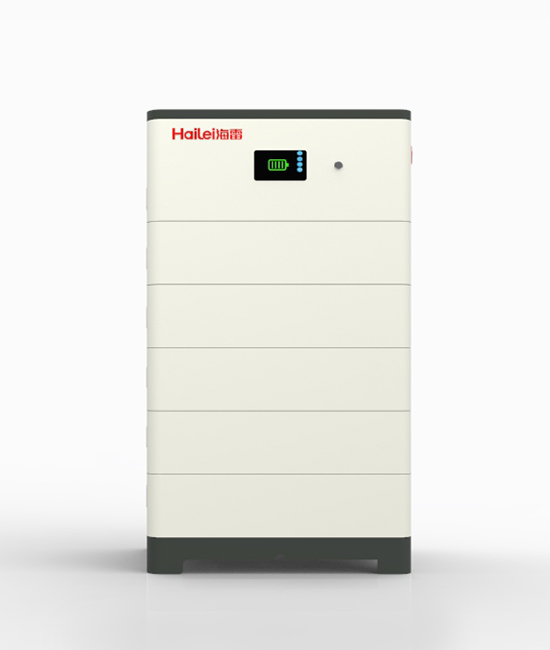

HERO HV Battery

High voltage system, higher energy conversion efficiency, less energy loss.

Top safety certification

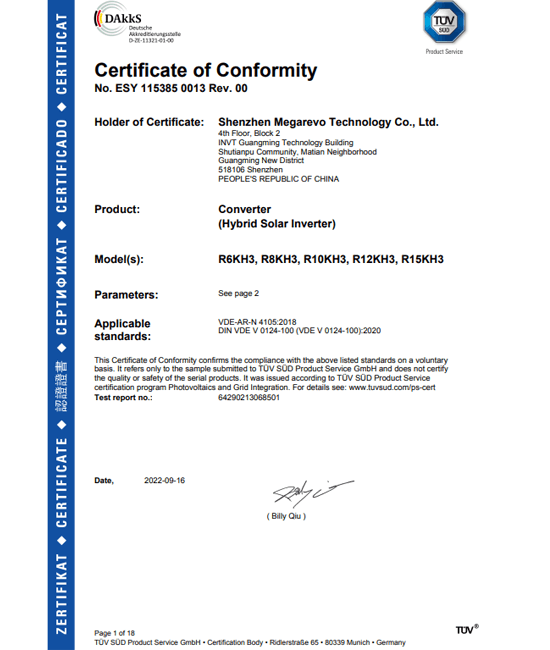

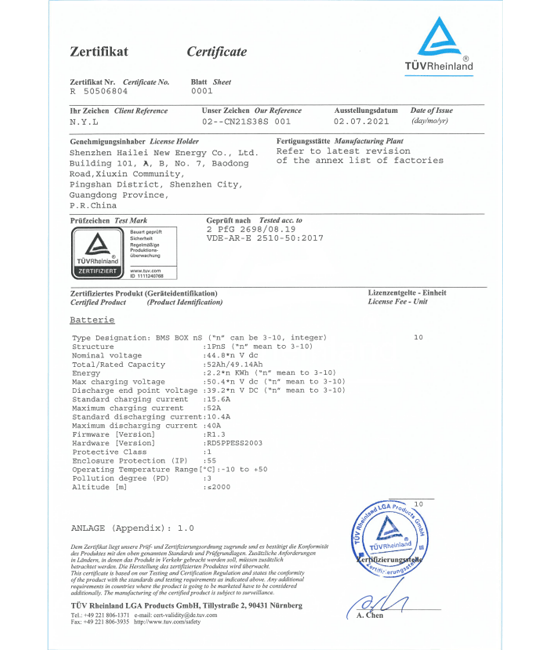

The battery has passed TÜV VDE2510-50 certification,the inverter has passed VDE V 2410-100 certification

Long Cycle Life

Long cycle life and superior performance,Module design help for quick installation.

User-friendly

Input power source priority can be set by users.

Intelligent BMS

Intelligent battery management system, all-round monitoring of battery pack system status, multiple protections.

Protection

Battery reverse connection protection,anti-power control function.
  • Battery Type
  • High Voltage Stackable LiFePO4 Battery

  • Battery Voltage
  • 153.6V-409.6V

  • Battery Rated Cpacity
  • 10.24kWh-15.36kWh

  • Battery system Capacity
  • 10.24kWh-245.76kWh

  • Battery Cycle
  • 6000 Cycles

  • Rated Power
  • 8.8kVA

  • Output Voltage
  • 400V/360~440V

  • Max PV Charge Current
  • 12.5A

  • Max PV Input Power
  • 10.4kW

  • Mppt Operating Voltage
  • 180V-850V

  • MPPT efficiency
  • 99.5%

  • Battery charge /discharge efficiency
  • 96.6%

  • Peak Power
  • 200W

  • Open Circuit Voltage
  • 20V

  • Working Current
  • 18V

  • Solar Energy Conversion Rate
  • ≥22%

  • Connection Method
  • 26S2P

  • Solar Panel System Peak Power
  • 10.4kW

  • Battery Type
  • High Voltage Stackable LiFePO4 Battery

  • Battery Voltage
  • 153.6V-409.6V

  • Battery Rated Cpacity
  • 12.8kWh-15.36kWh

  • Battery system Capacity
  • 12.8kWh-245.76kWh

  • Battery Cycle
  • 6000 Cycles

  • Rated Power
  • 13.2kVA

  • Output Voltage
  • 400V/360~440V

  • Max PV Charge Current
  • 12.5A

  • Max PV InputPower
  • 15.6kW

  • Mppt Operating Voltage
  • 180V-850V

  • MPPT efficiency
  • 99.5%

  • Battery charge /discharge efficiency
  • 96.8%

  • Peak Power
  • 200W

  • Open Circuit Voltage
  • 20V

  • Working Current
  • 18V

  • Solar Energy Conversion Rate
  • ≥22%

  • Connection Method
  • 39S2P

  • Solar Panel System Peak Power
  • 15.6kW
