HERO-TP series

HERO-TP series residential three phase ESS hybrid inverter have 5 power rated, including 6kW,8kW, 10kW,12kW and 15kW, compatible with single-phase load and three-phase load, support 100% unbalanced load, and the maximum efficiency can reach 97.9%.
Buy Now Download

Features

Parameter

Certification

Safe & Reliabl

With island protection, PV reverse polarity protection, battery reverse polarity protection, insulation monitoring, residual current monitoring, AC over current protection, AC over power protection, short circuit protection

Friendly & Flexible

Less noise due to no external cooling fans;Support diesel generator access;Support full power discharge, automatic management of battery charge and discharge.

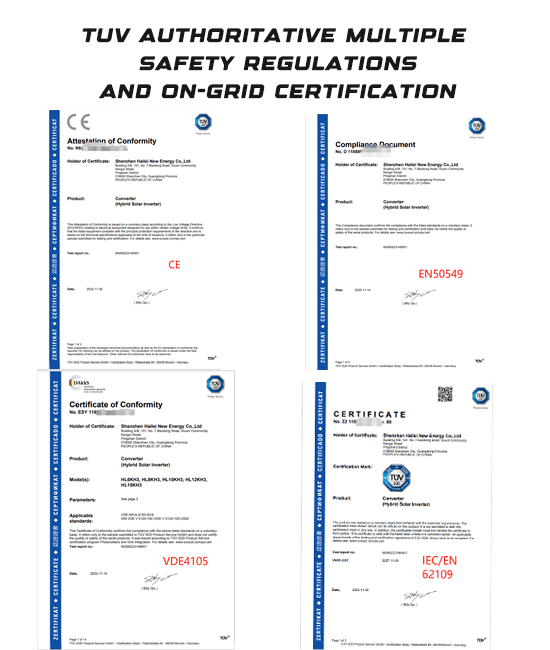

Top Safety Certification

TUV AUTHORITATIVE SAFETY REGULATIONS:CE,IEC62109,EN62109 and ON-GRID CERTIFICATION:VDE4105,EN50549

Economical & Practical

It is more economical to support multiple operating modes;Can be as a UPS for the important loads when power off.
  • Model

    • HL6KH3/HL8KH3/HL10KH3/ HL12KH3/HL15KH3

  • Rated Output Power to Grid

    • 6/8/10/12/15（kW）

  • Rated Output Power(back up)

    • 6/8/10/12/15（kVA）

  • Max.PV Input Power

    • 9/12/15/18/22.5(kW)

  • MPPT Voltage Range

    • 180~850V

  • Rated AC Voltage

    • 230/400 Va.c.,3W+N+PE

  • Rated AC Frequency

    • 50/60HZ

  • Battery Voltage Range

    • 125-600 Vd.c.

  • Ingress Protection

    • IP65

  • Operating Temperature Range

    • -35~60°C

  • Installation

    • Wall Mounted

  • Certification

    • IEC62109/EN62109/CE/ VDE4105/EN50549

  • Weight

    • 30/30/31/32/34(kg)

  • Dimensions(W*H*D)

    • 530*560*220mm

    Hailei VDE Certificate

    Hailei HERO-HV-VDE2510-50

    Hailei HERO-HV-IEC62619

    Hailei VDE Certificate

    Hailei UL certificate

    Haieli HERO-HV-CE

    Hailei CE Certificate

    Hailei IEC Certificate

    Hailei ICE Certificate

    Hailei CE Certificate

    Hailei UN38.3 test report

    Hailei UN38.3 air transport

    Hailei UN38.3 land transport

    ISO9001:2015 certification

    ISO9001:2015 certification

    CQC product certification

    Hailei CE Certificate

    Hailei MSDS certification
